EV Charging Adapter Convertor SAE J1772 Type 1 Female To Tesla Male Compatible With Model S 3 X Y

Description

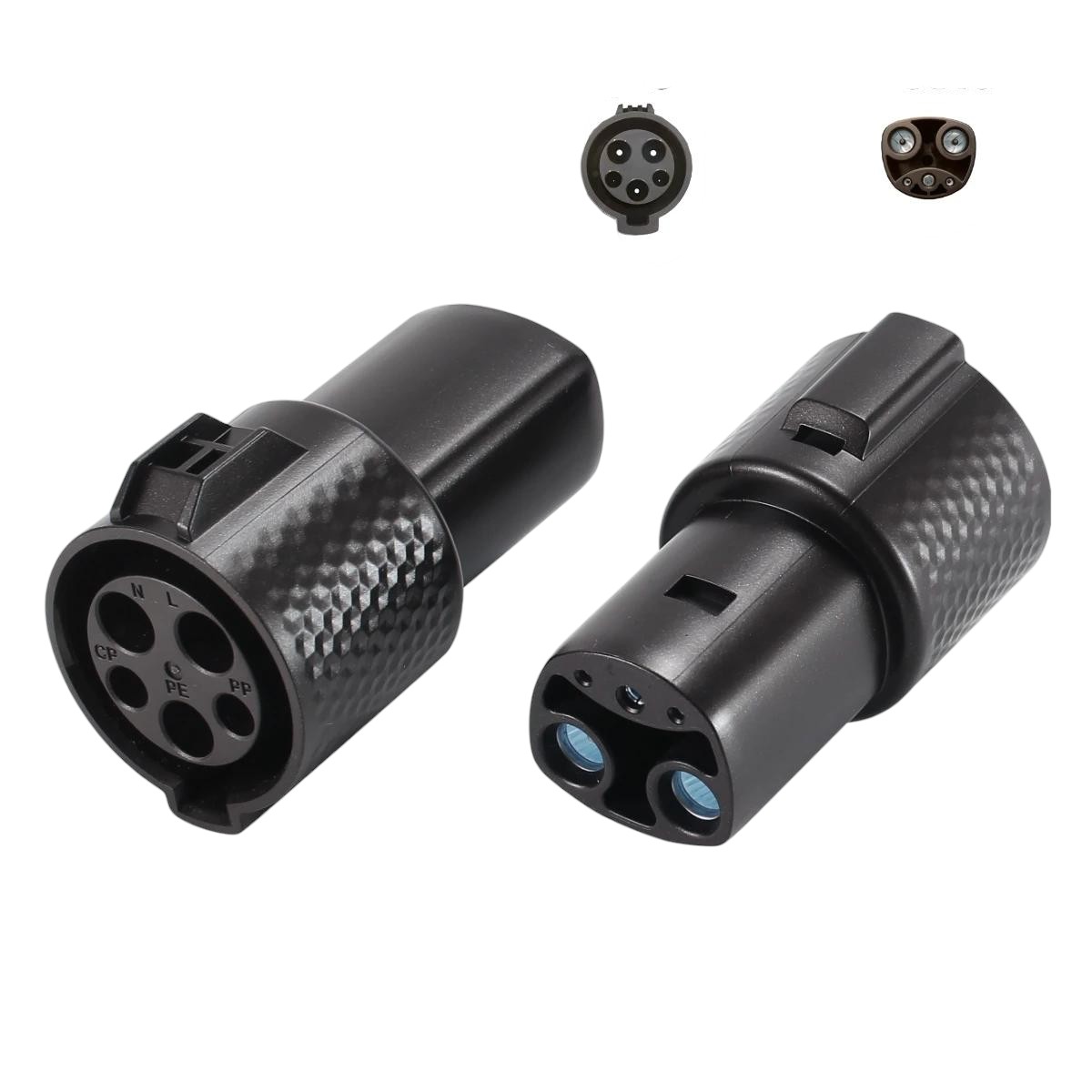

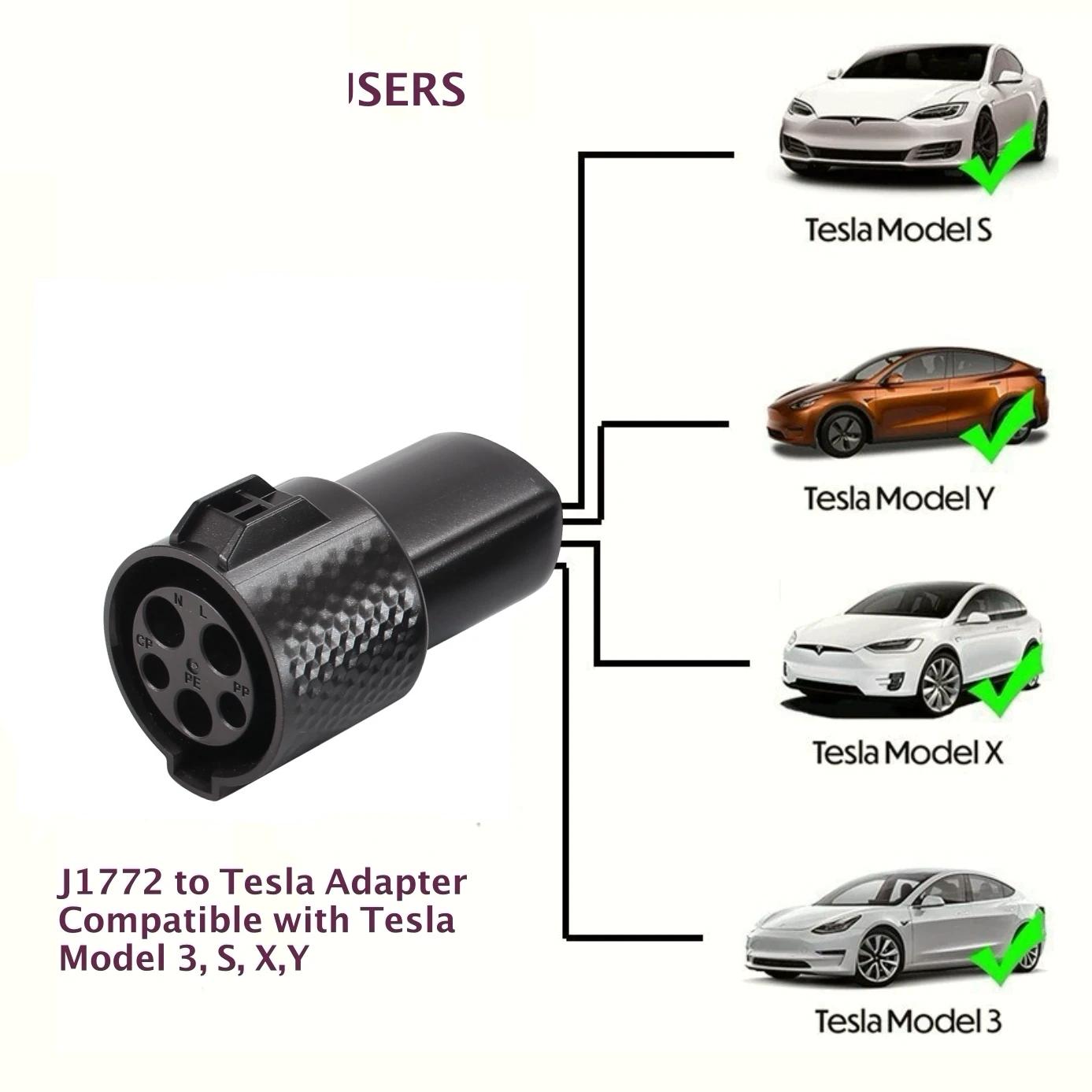

EVcharger4U SAE J1772 Type 1 Female to Tesla Male Adapter EV Charging Adaptor Compatible with all Tesla Model S 3 X and Y



Electrical Performance

Protection rank: IP55

Fire retardant level: 94 V-0

Rated Current: 80A

Rated voltage: 110-250V

Size: 100mm/3.94inch (length)

Withstand voltage: AC2000V

Insulation resistance: >100M ohm

Leakage current: 5mA

Terminal temperature rise: <50K

Coupled insertion force: <75N

Operating temperature: -35C to 50C



Mechanical Testing

Mechanical life: no load plug in / pull out > 10000 times

Impact of external force: qualify 1m drop or 2 Ton vehicle run over



Materials Applied

Connector: by copper alloy with nickel bottom plating and 3um silver surface plating

Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing



Features

Product conforms to connector and plug standard of UL2251 and SAEJ1772

IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance
