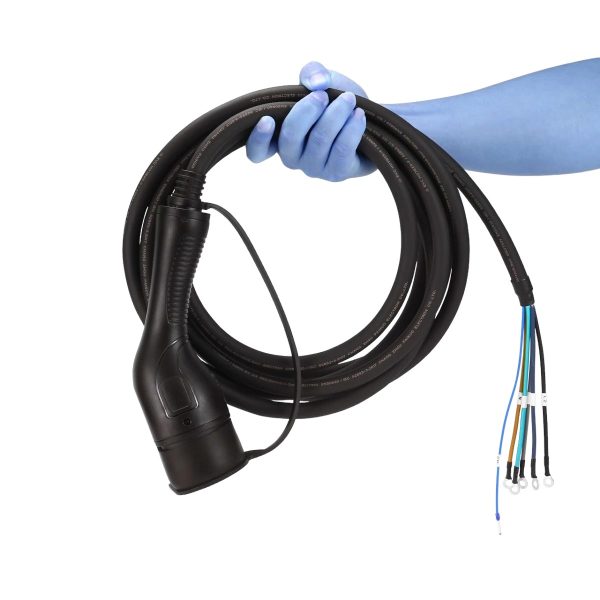

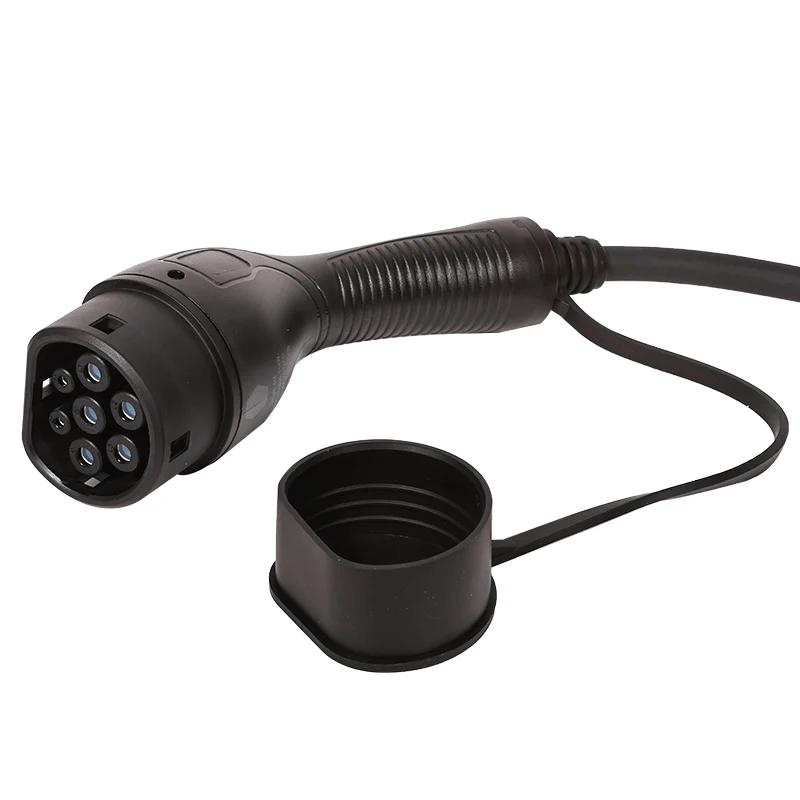

EV Charging Cable IEC62196 Type 2 Female To Open Wire 3.5KW 7KW 11KW 22KW For Electric Vehicle Charger Station

$56.50 – $175.00

Shipping: Processing time: 3 business days. Delivery time depends on item size and shipping method. Shipping cost is calculated at checkout based on volumetric weight and destination.

Returns: 30-day returns accepted. Non-defective returns may be subject to a USD 20 return label fee and a USD 20 restocking fee. Approved refunds are processed within 7 days after inspection. See our Return & Refund Policy for details.

Compatibility Notice: Brand names, OEM numbers, and vehicle model references are used for compatibility identification only. TeslGo is an independent seller and is not affiliated with or endorsed by Tesla, Inc. or BYD unless explicitly stated otherwise.

Description

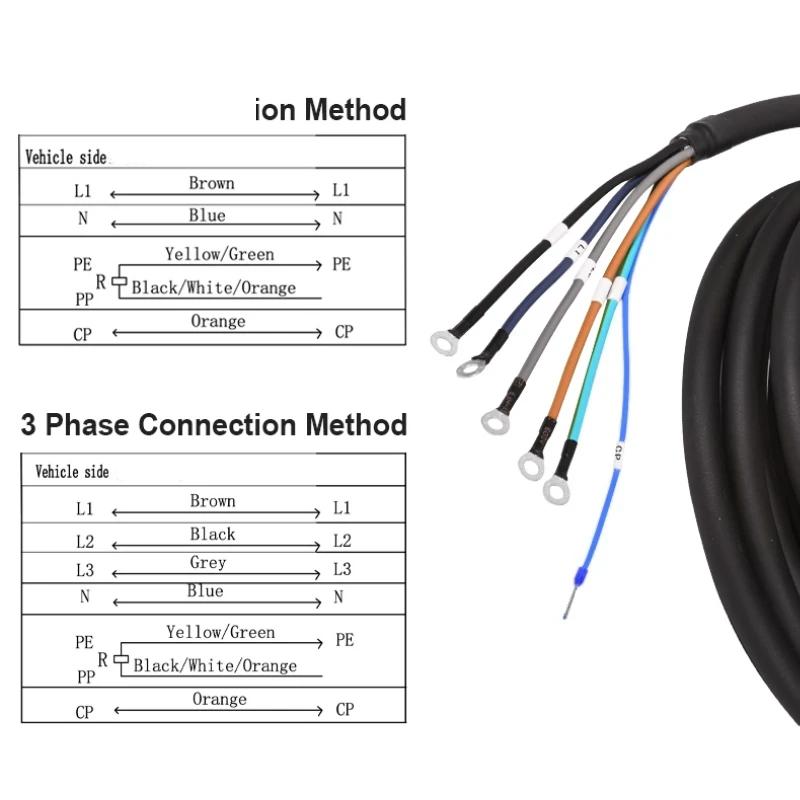

Model No. and Cable specification

V1-16S-V: 3×2.5mm2+2×0.5mm2 (16A/1phase, 250V)

V1-32S-V: 3×6.0mm2+2×0.5mm2 (32A/1phase, 250V)

V1-16T-V: 5×2.5mm2+2×0.5mm2 (16A/3phase, 480V)

V1-32T-V: 5×6.0mm2+2×0.5mm2 (32A/3phase, 480V)



Electric Performance£º

Protection rank: IP55

Fire retardant level: 94 V-0

Rated Current: 16A / 32A

Rated voltage: 250V / 480V

Insulation resistance: > 1000M ohm (DC 500V)

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact resistance: 0.5m ohm Max

Coupled insertion force: >45N <80N

Operating temperature: -30C to 50C



Mechanical Testing

Mechanical life: no load plug in / pull out > 10000 times

Impact of external force: qualify 1m drop or 2 Ton vehicle run over



Materials Applied

Connector: by copper alloy with nickel bottom plating and 3um silver surface plating

Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing

Cable: black with TPU jacket. Other color optional by customizing



Features

Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014

IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance






Additional information

Weight 3 kg
Dimensions 32 × 32 cm
SKU

771#1Phase 32A 7KW 8M, 193#1Phase 32A 7KW 12M, 173#3Phase 16A 11KW 8M, 1254#3Phase 32A 22KW 8M, 365458#1Phase 16A 3.5KW 8M, 350850#3Phase 32A 22KW 5M, 691#3Phase 16A 11KW 5M, 200004890#1Phase 16A 3.5KW 5M, 175#1Phase 32A 7KW 5M, 200004889#Customized 11KW 10M
