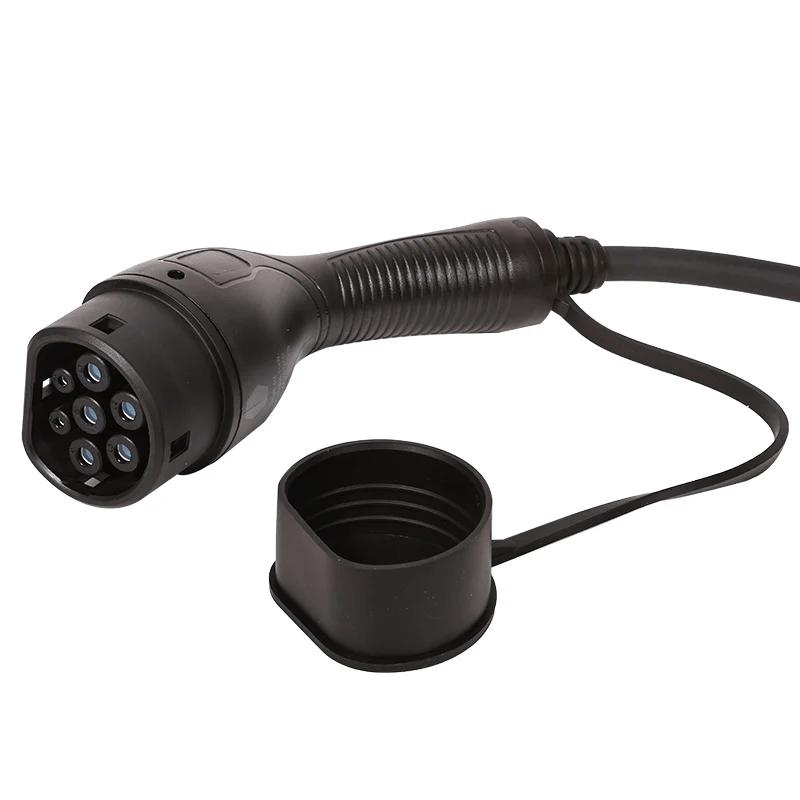

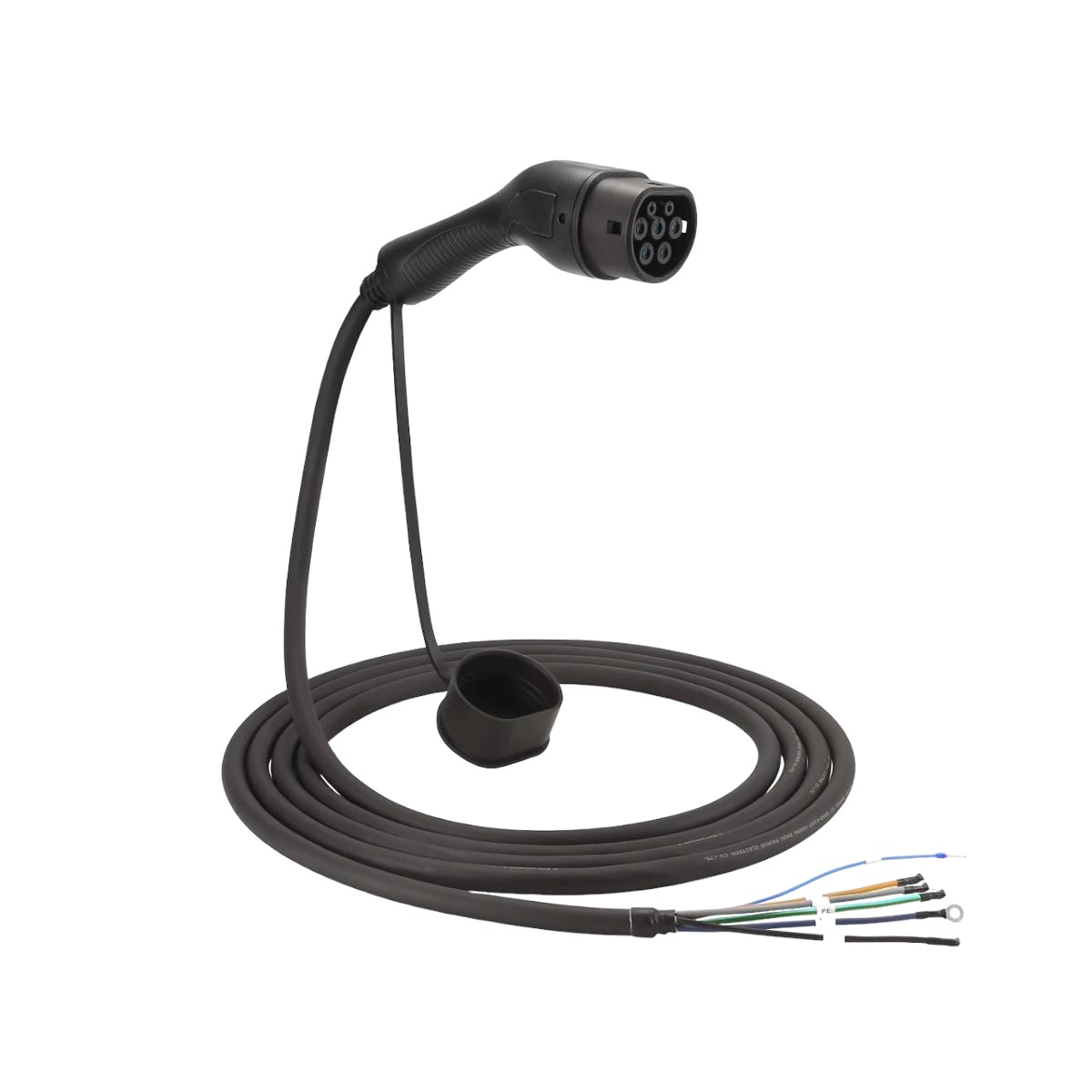

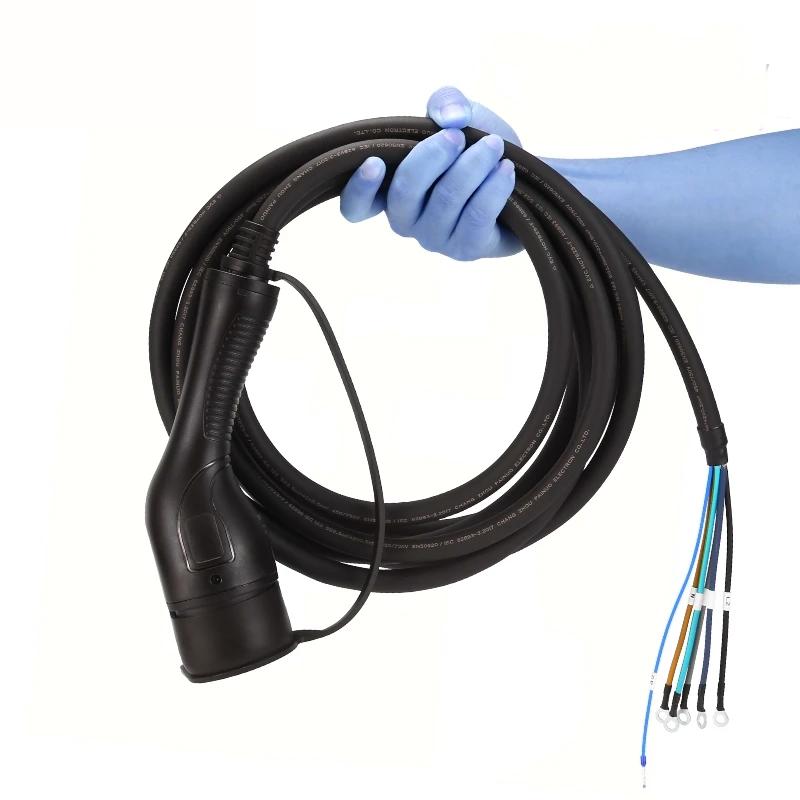

EV Charging Cable Open End Type 2 16A 32A 1Phase 3Phase 250V 480V 3.5KW 7KW 11KW 22KW 5M For Electric Car
$56.72 – $90.91
Shipping: Processing time: 3 business days. Delivery time depends on item size and shipping method. Shipping cost is calculated at checkout based on volumetric weight and destination.
Returns: 30-day returns accepted. Non-defective returns may be subject to a USD 20 return label fee and a USD 20 restocking fee. Approved refunds are processed within 7 days after inspection. See our Return & Refund Policy for details.
Compatibility Notice: Brand names, OEM numbers, and vehicle model references are used for compatibility identification only. TeslGo is an independent seller and is not affiliated with or endorsed by Tesla, Inc. or BYD unless explicitly stated otherwise.
Description

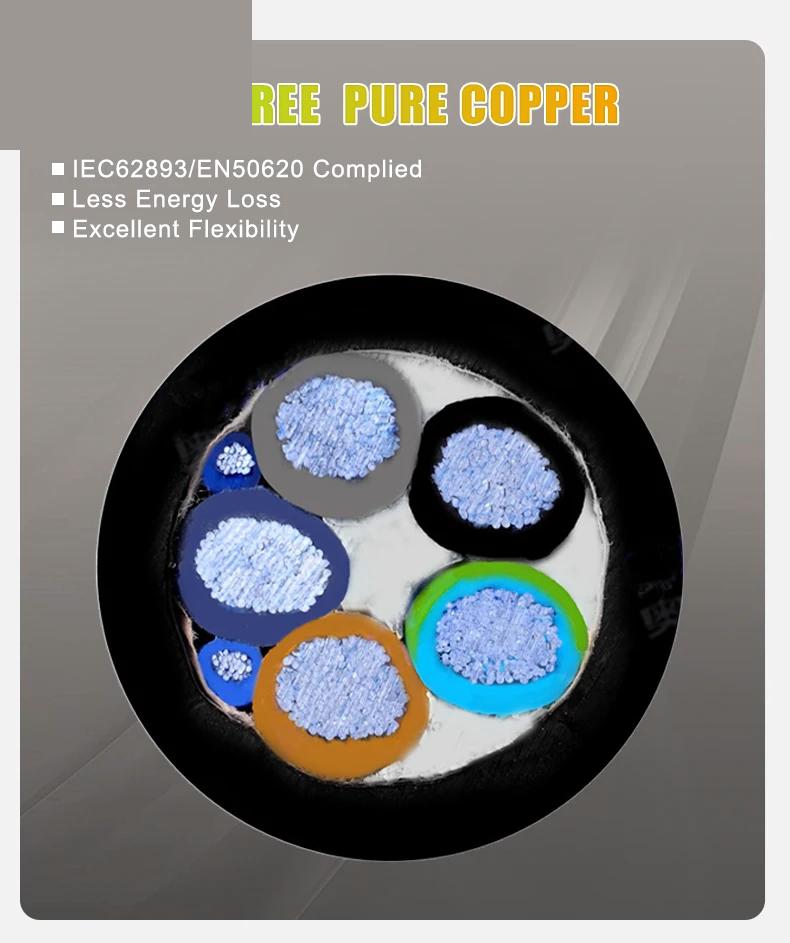

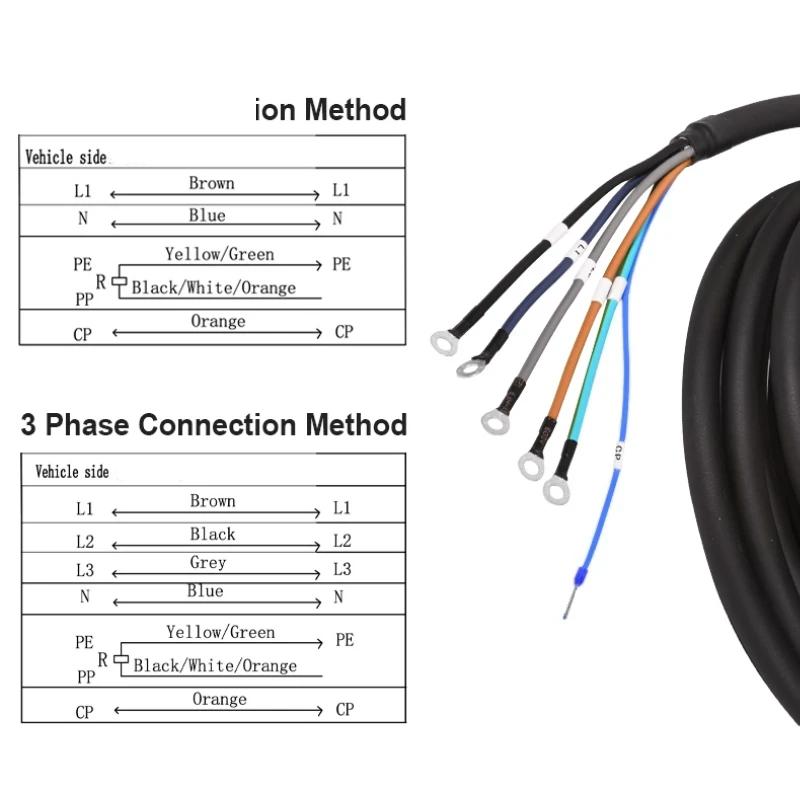

Model No. and Cable specification
V1-16S-V: 3×2.5mm2+2×0.5mm2 (16A/1phase, 250V)
V1-32S-V: 3×6.0mm2+2×0.5mm2 (32A/1phase, 250V)
V1-16T-V: 5×2.5mm2+2×0.5mm2 (16A/3phase, 480V)
V1-32T-V: 5×6.0mm2+2×0.5mm2 (32A/3phase, 480V)
Electric Performance£º
Protection rank: IP55
Fire retardant level: 94 V-0
Rated Current: 16A / 32A
Rated voltage: 250V / 480V
Insulation resistance: > 1000M ohm (DC 500V)
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact resistance: 0.5m ohm Max
Coupled insertion force: >45N <80N
Operating temperature: -30C to 50C
Mechanical Testing
Mechanical life: no load plug in / pull out > 10000 times
Impact of external force: qualify 1m drop or 2 Ton vehicle run over
Materials Applied
Connector: by copper alloy with nickel bottom plating and 3um silver surface plating
Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing
Cable: black with TPU jacket. Other color optional by customizing
Features
Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014
IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 32 × 32 cm |
| SKU | 771#1Phase 16A 3.5KW 5M, 193#1Phase 32A 7KW 5M, 173#1Phase 16A 3.5KW 8M, 1254#3Phase 16A 11KW 5M |
