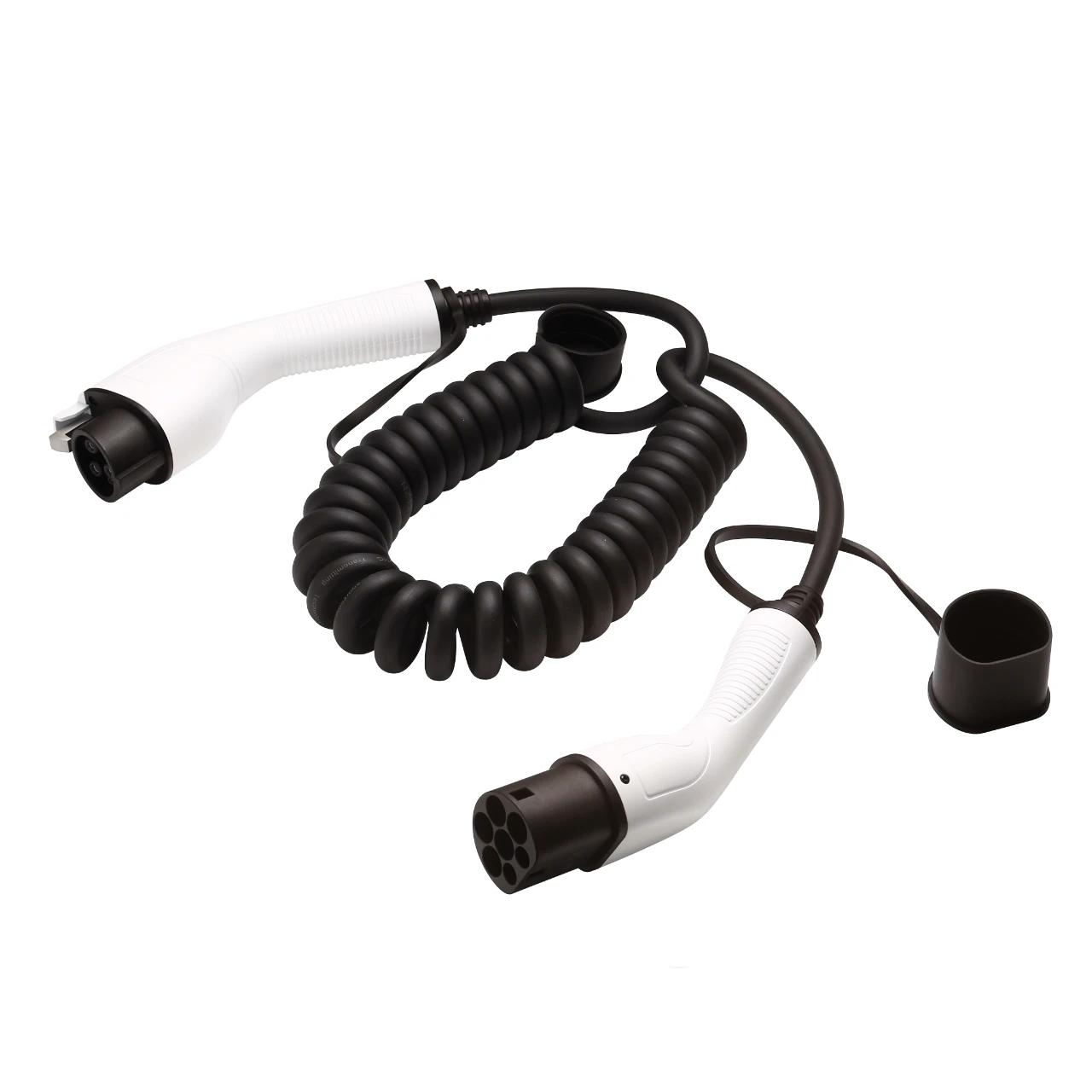

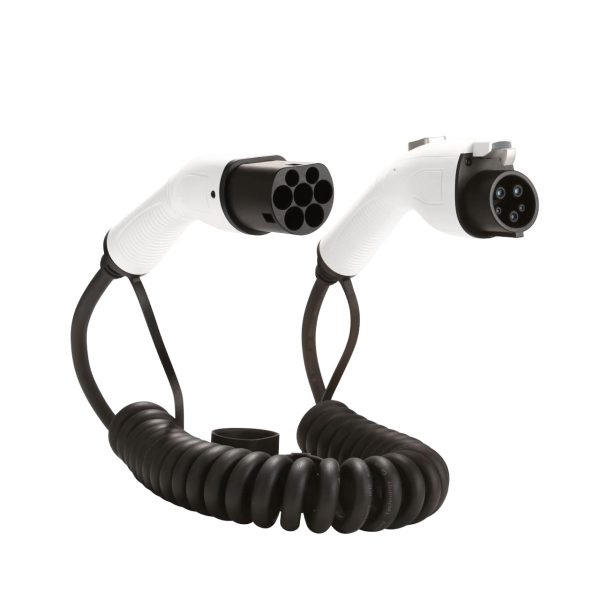

EV Charging Cable Spiral Type2 To SAE J1722 Type 1 1Phase 32A 110-250V 8KW Male To Female Coiled Charger Cables

$129.62 – $140.29

Shipping: Processing time: 3 business days. Delivery time depends on item size and shipping method. Shipping cost is calculated at checkout based on volumetric weight and destination.

Returns: 30-day returns accepted. Non-defective returns may be subject to a USD 20 return label fee and a USD 20 restocking fee. Approved refunds are processed within 7 days after inspection. See our Return & Refund Policy for details.

Compatibility Notice: Brand names, OEM numbers, and vehicle model references are used for compatibility identification only. TeslGo is an independent seller and is not affiliated with or endorsed by Tesla, Inc. or BYD unless explicitly stated otherwise.

Description

EVcharger4U Type2 To SAE J1722 Type 1 EV Charging Cable Spiral 1Phase 32A 110-250V 8KW Male To Female Coiled Charger Cables



Model No. and Cable specification

V1-16S-V: 3×2.5mm2+2×0.5mm2 (16A/1phase, 250V)

V1-32S-V: 3×6.0mm2+2×0.5mm2 (32A/1phase, 250V)



Electric Performance£º

Protection rank: IP55

Fire retardant level: 94 V-0

Rated Current: 16A / 32A

Rated voltage: 250V / 480V

Insulation resistance: > 1000M ohm (DC 500V)

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact resistance: 0.5m ohm Max

Coupled insertion force: >45N <80N

Operating temperature: -30C to 50C

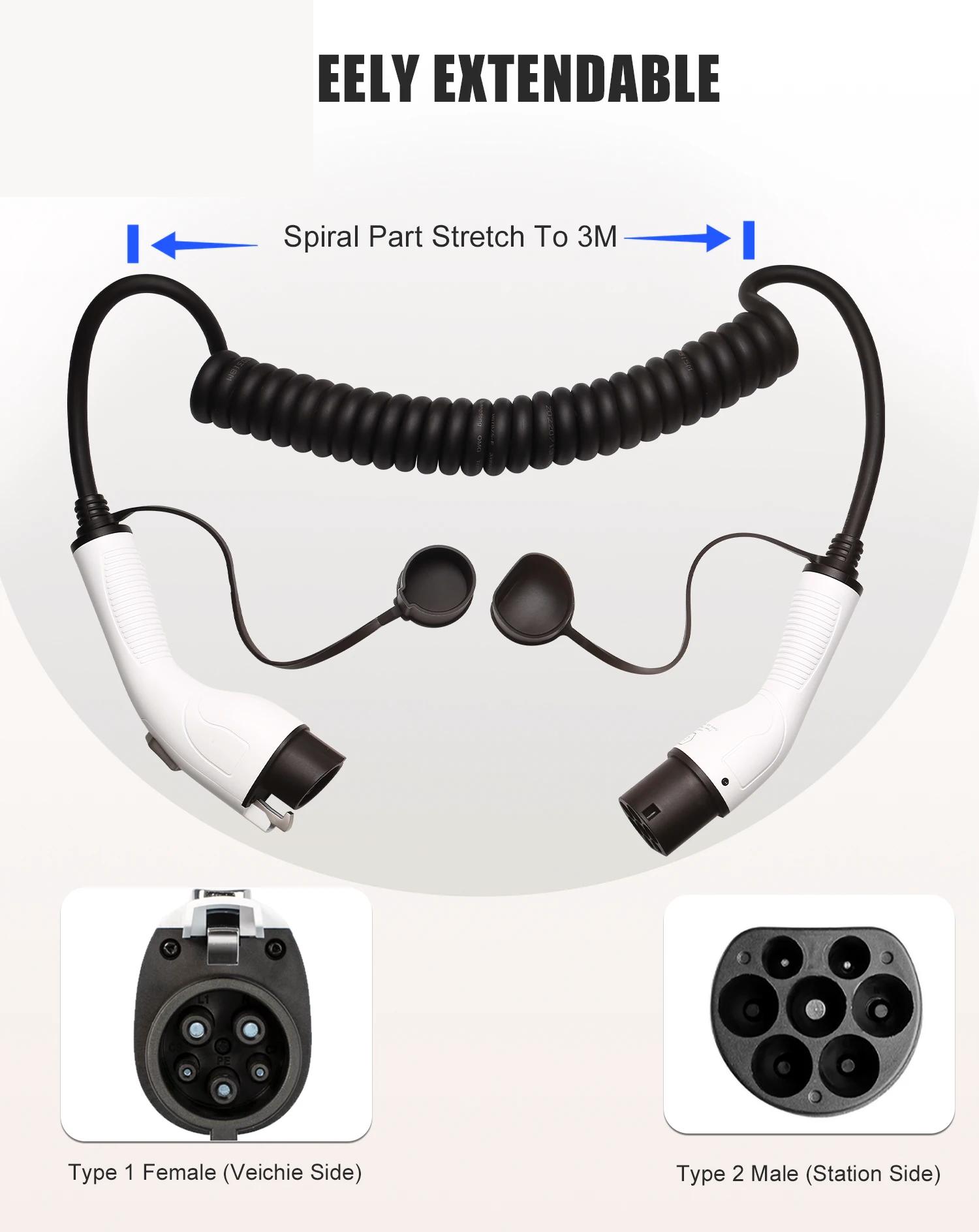

Each side keep 0.5M length, rest spiral

Spiral ratio: 0.25(25%); Workable length ratio: 0.5(50%)



Mechanical Testing

Mechanical life: no load plug in / pull out > 10000 times

Impact of external force: qualify 1m drop or 2 Ton vehicle run over



Materials Applied

Connector: by copper alloy with nickel bottom plating and 3um silver surface plating

Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing

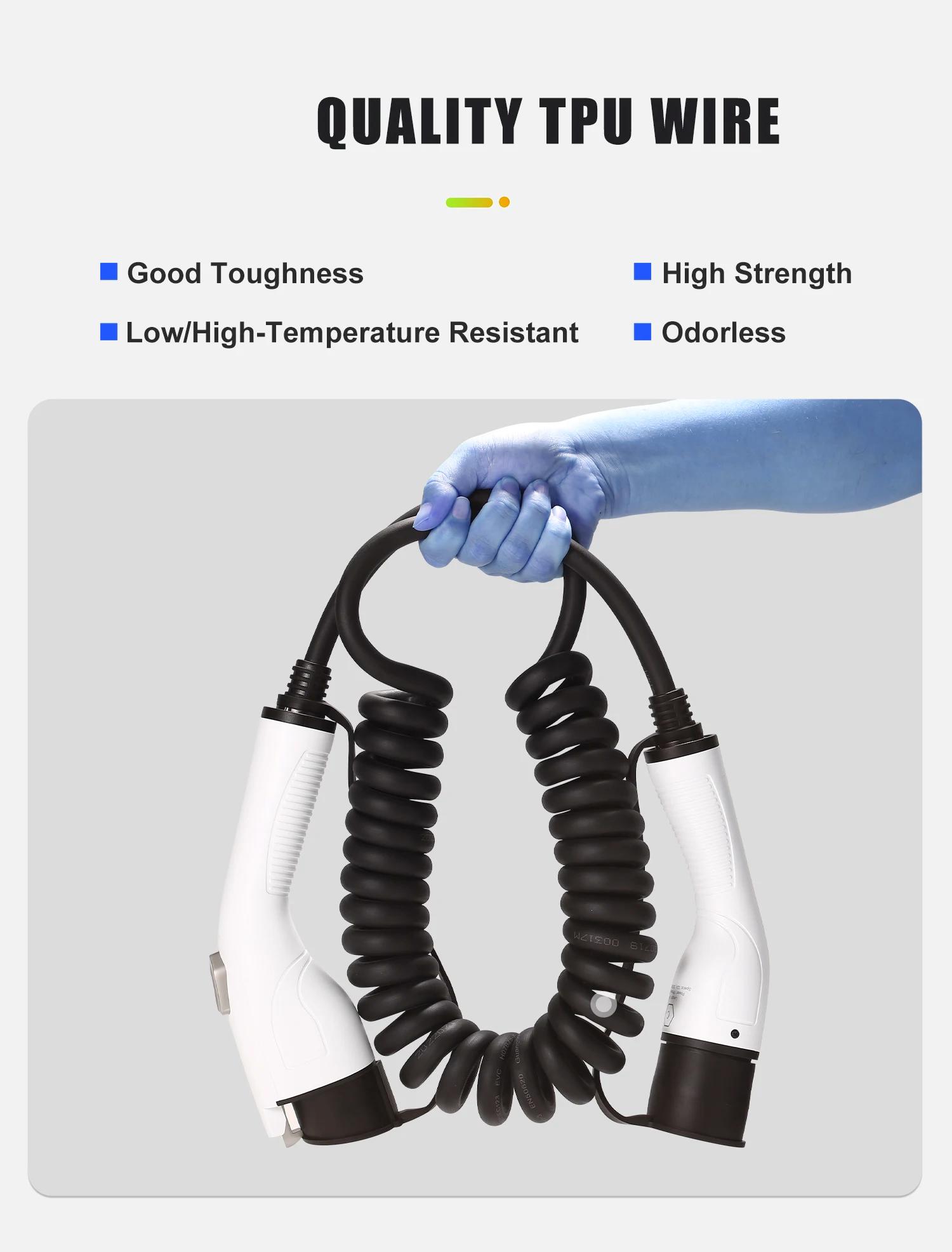

Cable: black with TPU jacket. Other color optional by customizing



Features

Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014

IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance






Additional information

Weight 3 kg
Dimensions 32 × 32 cm
SKU

771#1Phase 32A 8KW A, 193#1Phase 32A 8KW B, 173#1Phase 32A 8KW C, 1254#1Phase 32A 8KW D
